Precision Laboratory Microscopes & 4K Digital Pathology
Engineered for clinical diagnostic laboratories, histopathology suites, hematology stations, and medical research institutes across Punjab, Haryana, and Himachal Pradesh. Equipped with anti-fungal DIN Plan Achromatic optics, Siedentopf butterfly trinocular heads, rackless stages, and 4K Sony digital documentation for uncompromising diagnostic certainty.

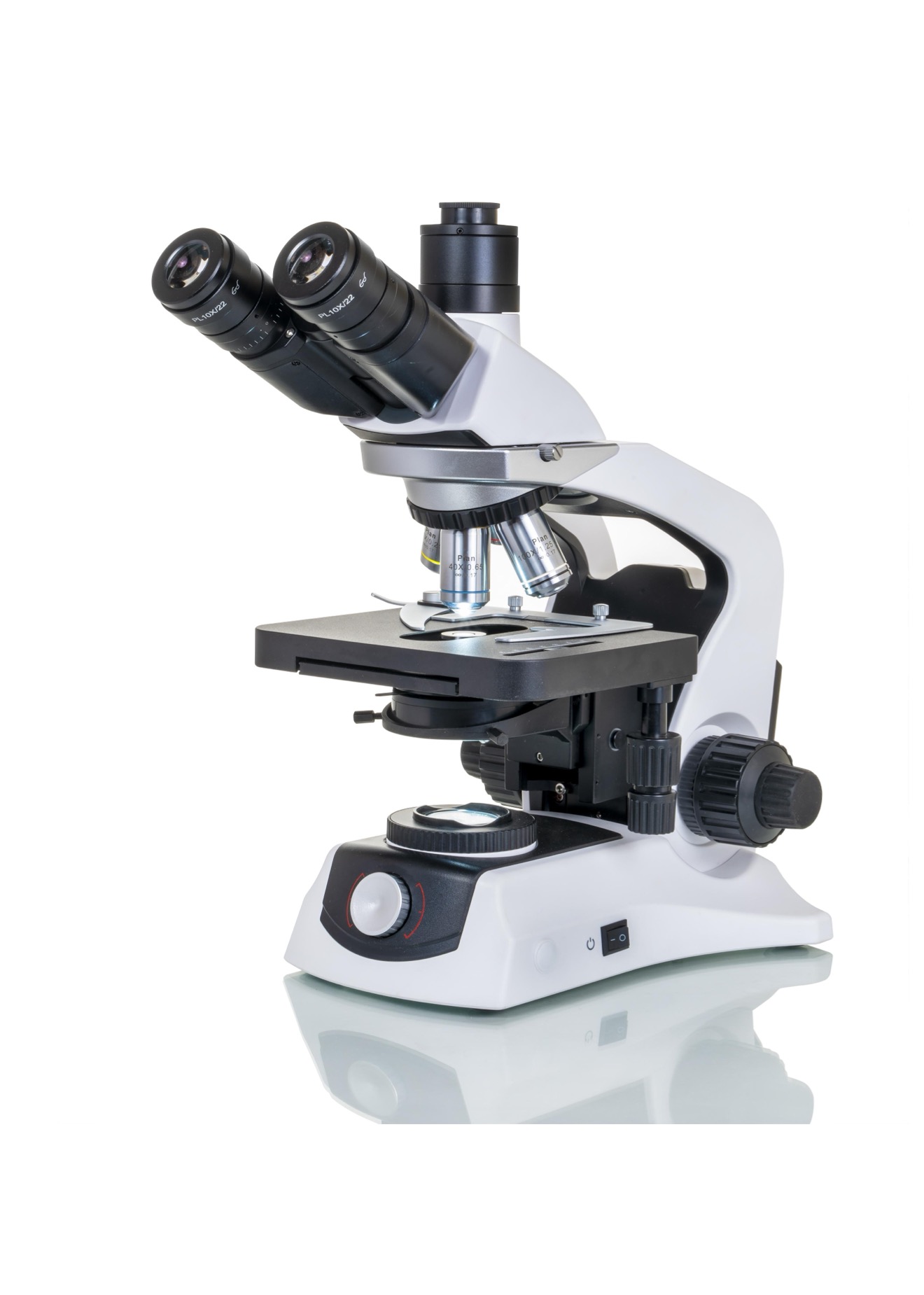

- Siedentopf Butterfly Trinocular Head: 30° inclined, 360° rotatable, with 48–75mm interpupillary range for zero musculoskeletal operator fatigue.
- DIN Plan Achromatic Anti-Fungal Objectives: 4x, 10x, 20x (optional), 40x (spring loaded), and 100x (spring loaded, oil) with anti-reflection multi-coatings.
- Sub-Stage Abbe NA 1.25 Condenser & Rackless Stage: 200 x 140mm scratch-resistant stage with double specimen clip and low-drive right-hand controls.
- 4K UHD 8MP Digital Suite with Sony Sensor: Real-time telepathology, patient report image attachments, and second opinions via HDMI & USB 3.0.
How a Quality Microscope Ensures Accurate Diagnosis & Guides Correct Patient Therapy
While automated cell counters and biochemical analyzers provide numbers, morphological evaluation under the microscope remains the supreme gold standard. A diagnostic error at the microscope directly impacts medical intervention. Here is how optical precision protects patients:
Histopathology: Cancer Margins & Dysplasia
The Clinical Risk: Distinguishing benign hyperplasia from early invasive carcinoma hinges on subtle nuclear abnormalities: hyperchromasia, irregular nuclear membranes, chromatin clumping, and mitotic counts. Low-quality achromats suffer from spherical aberration where peripheral tissue looks blurry, causing pathologists to miss micro-invasive tumor margins.
Hematology: Leukemia vs. Reactive Atypia
The Clinical Risk: Automated 5-part hematology counters flag abnormal leukocytes, but a pathologist must review the peripheral blood smear (PBS). Identifying delicate Auer rods (Acute Myeloid Leukemia), nucleoli, or differentiating true thrombocytopenia from EDTA platelet satellitism requires pristine 100x oil immersion optics.
Microbiology: AFB, Malaria & Mycology
The Clinical Risk: A patient with fever of unknown origin (FUO) may harbor tiny ring-forms of Plasmodium falciparum inside erythrocytes or solitary red Acid-Fast Bacilli (AFB M. tuberculosis) in sputum. With poor condenser numerical aperture or chromatic fringing, faint organisms blend into staining artifacts.
Cytology: Pap Smear & FNAC Diagnosis
The Clinical Risk: Fine Needle Aspiration Cytology (FNAC) and liquid-based Pap smears present multi-layered 3D cell clusters. Standard coarse mechanisms jump past the focal plane, causing technicians to miss koilocytic changes (HPV), ASCUS, or nuclear molding in thyroid nodules.
Nephrology: Glomerular Bleeding & Crystals
The Clinical Risk: Urine chemical dipsticks simply show "blood positive". Only microscopic examination of centrifuged sediment differentiates dysmorphic acanthocytes (indicative of acute glomerulonephritis) from isomorphic red cells (lower urinary bladder stone or tumor).
Telepathology: Instant Expert Consultation
The Clinical Risk: In borderline lymph node biopsies or rare soft-tissue tumors, a standalone lab in tier-2 cities (Bathinda, Yamunanagar, Shimla) may require a sub-specialist opinion from PGIMER Chandigarh or AIIMS New Delhi. Mailing glass slides causes weeks of anxious delay.
Why Plan Achromatic Optics are Mandatory for NABL-Accredited Labs
In standard commercial achromats, spherical field curvature causes the centre of the view to be sharp while the outer 30% of the field is distorted and out of focus. Technicians are forced to constantly readjust focus as they pan across the slide, introducing extreme fatigue and missed findings.
Zenaca DIN Plan Achromatic Objectives incorporate corrective lens elements that flatten the entire focal plane. 100% of the 22mm field of view is crystal clear simultaneously.
Diagnostic Field Comparison (Standard vs. Plan)
7 Non-Negotiable Requirements in a Clinical Laboratory Microscope
A clinical microscope is subjected to 6 to 10 hours of intensive daily pathology workload. To ensure reliable diagnostic outcomes, prevent operator fatigue, and protect specimen integrity, these 7 engineering specifications are strictly non-negotiable:
Single Mold Aluminum Die-Cast Stand
Eliminates micro-vibrations from nearby centrifuges and vortex mixers. Ergonomic built-in low-position hand rests allow forearms to remain flat on the table, drastically reducing musculoskeletal fatigue during multi-hour slide examinations.
Siedentopf Butterfly Viewing Head
30° inclined and 360° rotatable with 48–75mm interpupillary distance adjustment. Crucially, the optical tube length remains fixed when interpupillary distance changes, preventing focus drift and reticle recalibration between different laboratory technicians.
Reverse-Angle Quintuple Nosepiece
Inward-facing ball-bearing revolving nosepiece keeps unused objectives directed inward. This provides wide, unobstructed clearance over the mechanical stage, preventing accidental objective collisions and oil contamination when changing slides rapidly.
Rackless X-Axis Mechanical Stage
Advanced wire/belt-driven rackless mechanism eliminates protruding metal drive racks that hit or scratch the technician's hands during continuous slide screening. Comes with a double specimen clip to view patient and control slides simultaneously.
Abbe N.A. 1.25 Condenser & Aspheric Optics
Centerable sub-stage Abbe condenser matching objective numerical apertures with an iris diaphragm and blue daylight balance filter. Incorporates high-transmission aspheric collector lenses for glare-free, uniform Kohler illumination across the entire field.
Coaxial Ball-Drive Focusing with Safety Stop
Heavy-duty brass gear coarse and fine coaxial mechanism with 0.002mm precision scale divisions and adjustable tension ring. A built-in mechanical autofocus upper-stop protects expensive cover slips and 100x oil immersion lenses from accidental crushing.
Pure Daylight 3W LED Illumination & Tropicalized Anti-Fungal Sealed Optics
High-intensity cold daylight 3W LED with universal 100V–240V internal voltage stabilizer maintains constant 6000K color temperature across all brightness levels without thermal specimen degradation or bulb burnout. Crucially, all internal optical prisms, beam splitters, and Plan lenses are chemically treated with proprietary anti-fungal coatings to permanently prevent lens clouding during high-humidity monsoons across Punjab, Haryana, and Himachal Pradesh.
Official Technical Specifications
Comprehensive physical, mechanical, optical, and electrical specifications verified against official engineering datasheets:
| Parameter | Engineering Specification |
|---|---|
| Stand Construction | Single mold Aluminum stand with ergonomic hand rests for enhanced comfort, thermal dissipation, and vibration damping. |
| Viewing Body | Siedentopf butterfly type Trinocular head, 30° inclined, 360° rotatable. Interpupillary distance 48 – 75mm with diopter adjustment on both oculars. |
| Eyepieces | Extra Wide Field (EWF) 10x/22mm eyepieces with soft rubber eyecups (spectacle wearer compatible, high eye-point). |
| Nosepiece | Reverse angle quintuple nosepiece (ball-bearing type) with positive click stops, knurled rubber grip, and dust-sealed rotation. |
| Objectives Suite |
i-series DIN Plan Achromatic Objectives: • 4x / 0.10 (Scanning & Tissue Architecture) • 10x / 0.25 (Survey & Overview) • 20x / 0.40 (Optional High-dry in IOx-Ne620 series) • 40x / 0.65 (Spring-loaded, high dry for cytology & urine sediment) • 100x / 1.25 (Spring-loaded, Oil Immersion for PBS, AFB, and Microbiology) All optical glass treated with anti-fungal and multi-layer anti-reflection coatings. |
| Mechanical Stage | Rackless X-axis double plate stage size 200 x 140mm. X/Y travel range 90mm x 50mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder clip. |
| Condenser | Sub-stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with graduated aperture scale, blue daylight filter. Rack and pinion movements on stainless steel guides. |
| Focusing System | Coaxial coarse and fine focusing on ball drive system for smooth operation. Fine focus graduation 0.002mm per division. Equipped with tension adjustment and upper autofocus stop. |
| Illumination System | High-luminance 3W LED illumination with continuous variable intensity control (Up to 100,000 hours lifetime). Optional Halogen 6V-20W field Kohler system available. |
| Electronics & Power | Universal input 100V – 240V AC, 50/60Hz with integrated electronic voltage stabilizer protecting against regional line surges. |
| Modular Accessories | Pointers & Micrometer Reticules, Phase Contrast Kits, Polarizing Filter Suite, Single-Filter Fluorescence (FL) Attachments, Dark Field Condensers, 4K Sony Sensor Cameras & 0.5x C-Mount Adapters. |
| Standard Packaging | Power Cable (5ft), Immersion Oil, Cord Hanger Kit, Kohler Kit, Nylon Anti-Dust Cover, Optical Cleaning Cloth, and heavy-duty molded Styrofoam protective shipping casing. |
Microscope Models & Pricing Packages
Transparent capital equipment pricing for diagnostic centers, hospitals, and educational colleges across North India. All suites include regional installation, optical calibration, and a 2-year comprehensive warranty.
IOx-7 Delta Trinocular
Complete digital pathology package with high-sensitivity Sony Sensor, fluorescence & polarizing attachments.
- ✓ Head: Siedentopf Trinocular with 0.5x C-Mount
- ✓ Objectives: 4x, 10x, 40x (spring), 100x (oil) Plan Achromat
- ✓ Digital Imaging: spro4kuhd8mp with Sony Exmor Sensor
- ✓ Specialty Optics: Single Filter FL attachment included
- ✓ Accessories: LED pointer eyepiece + Polarizing filter set
- ✓ Warranty: 2-Year Comprehensive Coverage
IOx-Ne620 Trinocular
Apex medical college and histopathology suite featuring 5-objective configuration including 20x Plan objective.
- ✓ Head: Siedentopf Trinocular with C-Mount
- ✓ 5 Objectives: 4x, 10x, 20x, 40x (spring), 100x (oil)
- ✓ Digital Imaging: spro4kuhd8mp with Sony Sensor
- ✓ Specialty Optics: Single Filter FL attachment included
- ✓ Accessories: LED pointer eyepiece + Polarizing filter set
- ✓ Warranty: 2-Year Comprehensive Coverage
IOx Routine Series
Optical workhorse for peripheral blood smears, routine urine analysis, stool examination, and semen analysis.
- ✓ Head: Binocular or Trinocular Siedentopf (30°)
- ✓ Optics: DIN Semi-Plan / Plan Achromat (4x, 10x, 40x, 100x)
- ✓ Condenser: Abbe NA 1.25 with Iris Diaphragm
- ✓ Illumination: 3W LED Variable Daylight System
- ✓ Upgradable: Add 4K camera at any point later
Does Your Current Microscope Pass an NABL Optical Audit?
Under NABL ISO 15189:2022 guidelines, clinical microscopes must undergo annual optical calibration, stage micrometer verification, and documented maintenance logs. Zenaca Healthcare provides complete accreditation compliance support:
Schedule an Onsite Optical Audit
Our Mohali-based biomedical service engineers inspect your laboratory's microscopes anywhere across Punjab, Haryana, or Himachal Pradesh.
Request a Microscope Quote & Demonstration
Submit your facility requirements below. All details are shared directly with amarpreet@zenaca.in for prompt technical and commercial proposals:
Common Questions About Clinical Laboratory Microscopes
What is the difference between Achromatic and Plan Achromatic objectives?
Standard Achromatic objectives correct chromatic aberration for two colors but retain significant field curvature, leaving the outer 30% of the image blurred. Plan Achromatic objectives introduce additional correcting glass elements to flatten the field, ensuring 100% of the field is in sharp focus from center to edge.
Can the 4K digital camera connect directly to an LED monitor without a computer?
Yes! The spro4kuhd8mp camera features direct HDMI output. You can connect it straight to any standard 4K or Full HD medical monitor or television. The camera includes onboard firmware for capturing images and videos to an SD card, mouse control, crosshairs, and live measurement reticules without needing a PC.
How do you protect microscope optics from fungal growth in humid areas?
All Zenaca microscopes are equipped with factory anti-fungal and moisture-sealed lens coatings. Furthermore, each unit comes with a specialized nylon dust cover, immersion oil cleaning kits, and silica packets. We also provide annual preventive maintenance visits across Punjab, Haryana, and Himachal Pradesh.
What is the delivery turnaround time from the Mohali warehouse?
Standard IOx-7 Delta and IOx-Ne620 systems are stocked ex-stock at our Mohali hub. Delivery across the Tricity (Chandigarh, Mohali, Panchkula) is within 24 hours. For Ludhiana, Jalandhar, Amritsar, Ambala, Karnal, Panipat, Shimla, and Mandi, delivery and engineer installation are completed within 2 to 4 working days.
