Diagnostic Equipment • Chemiluminescence

Immunoassay Analyzers (CLIA)

Automated chemiluminescence immunoassay systems designed for efficient and reliable diagnostic testing across a wide range of laboratory applications. Zenaca Healthcare supplies, installs, and provides application engineering support for SNIBE MAGLUMI platforms across Punjab, Haryana, and Himachal Pradesh.

Compare Models

SNIBE MAGLUMI Series

Automated CLIA Systems for Every Workload

From compact benchtop analyzers for expanding private laboratories to high-throughput continuous platforms for diagnostic networks and medical colleges.

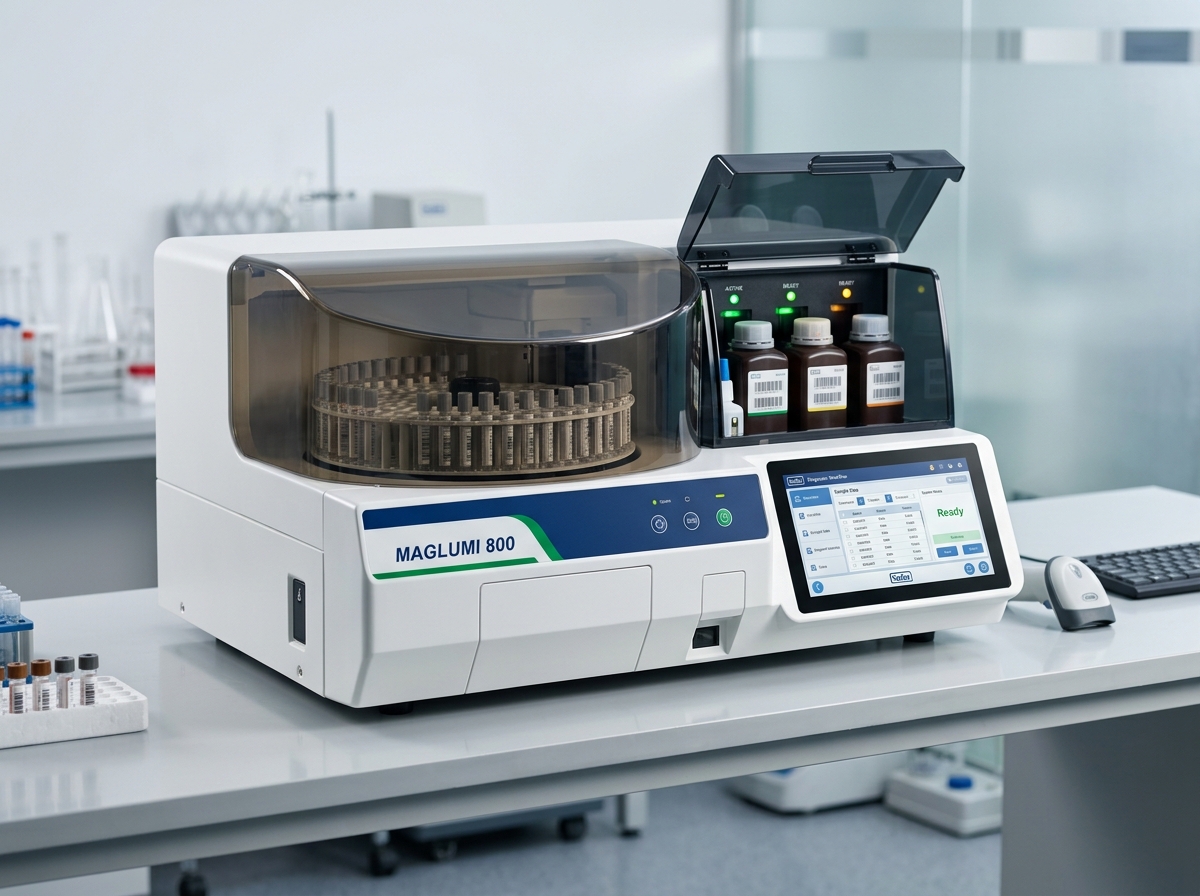

SNIBE CLIA SNIBE MAGLUMI 800 Benchtop Chemiluminescence Analyzer

Classic Benchtop Workhorse

SNIBE MAGLUMI 800

Proven benchtop chemiluminescence immunoassay system with widespread clinical adoption, circular sample carousel, and streamlined daily reagent handling for routine immunoassay menus.

Reference Price Ex-factory / GST extra

₹6,50,000

Throughput Up to 180 tests/hour
Sample Loading 40 sample positions
Reagent Positions 9 onboard reagents

Full Specs

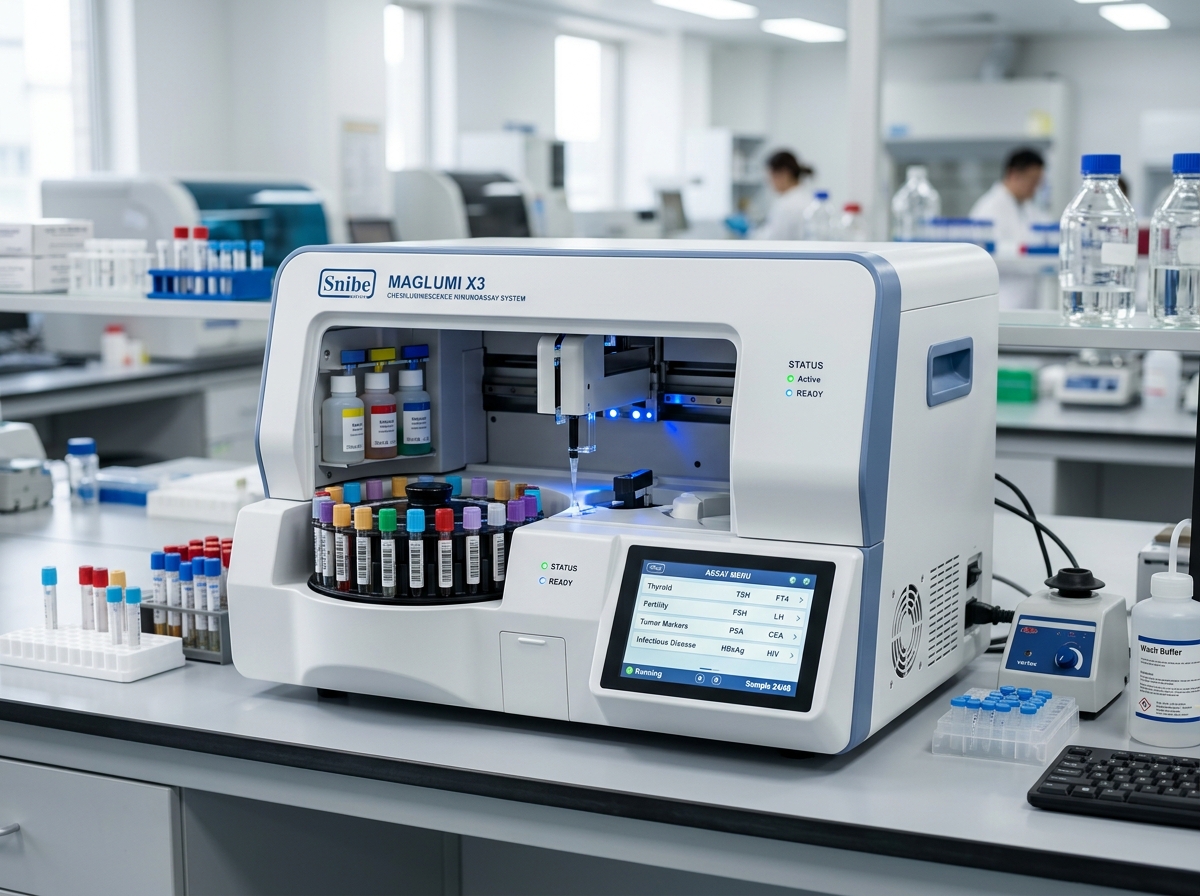

SNIBE CLIA SNIBE MAGLUMI X3

Next-Gen Compact Automated CLIA

SNIBE MAGLUMI X3

Next-generation automated chemiluminescence analyzer engineered to expand capacity and walkaway convenience with 72-tube capacity, 20 onboard reagents, and continuous non-stop operation.

Reference Price Capital / Placement

₹12,00,000

Throughput Up to 200 tests/hour
Sample Loading 72 sample positions (Continuous STAT)
Reagent Positions 20 onboard reagents

Full Specs

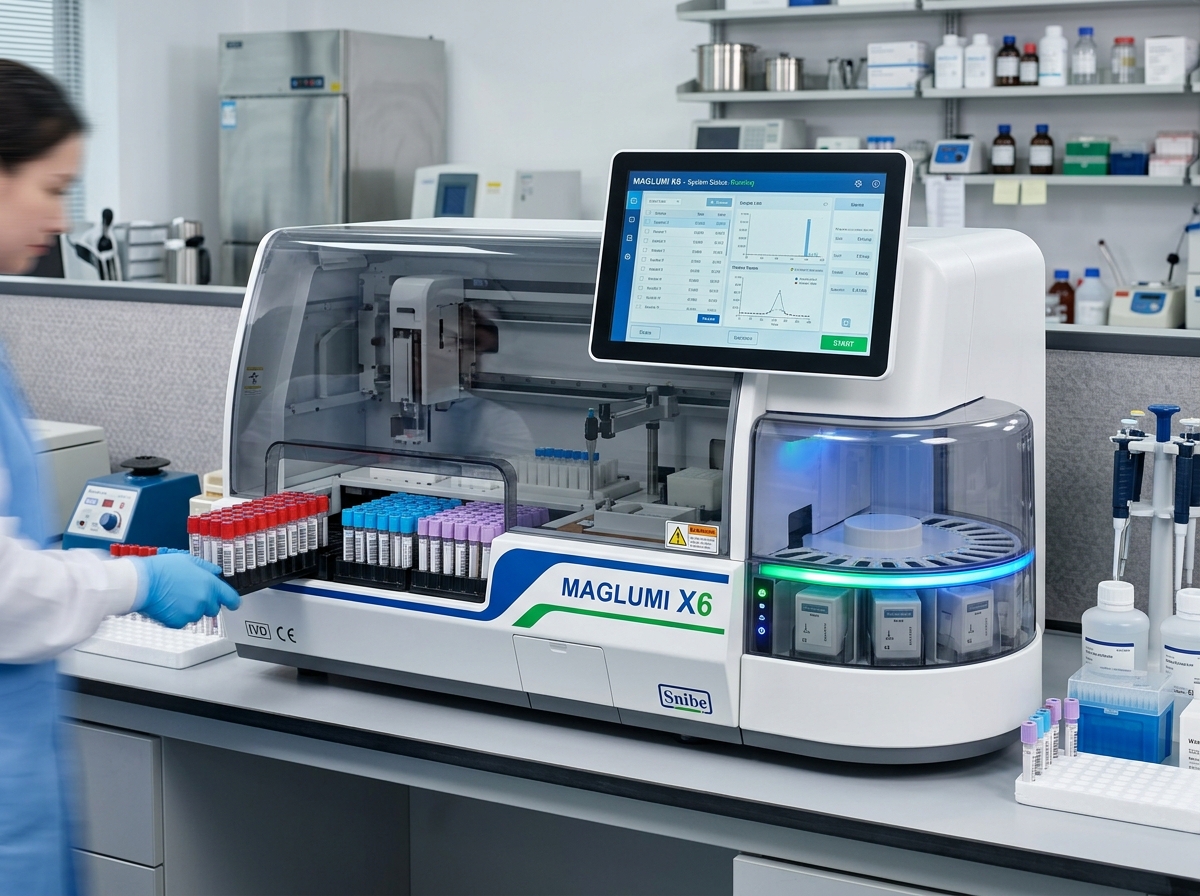

SNIBE CLIA SNIBE MAGLUMI X6 High-Throughput Chemiluminescence Analyzer

High-Throughput Mid-Range

SNIBE MAGLUMI X6

High-capacity automated chemiluminescence system built for mid-to-large diagnostic centres, featuring continuous 112-sample rack loading and refrigerated onboard reagent management.

Reference Price Reagent Rental Contract (RRC)

RRC / On Request

Throughput Up to 450 tests/hour
Sample Loading 112 sample positions (Rack-based)
Reagent Positions 30 onboard reagents

Full Specs

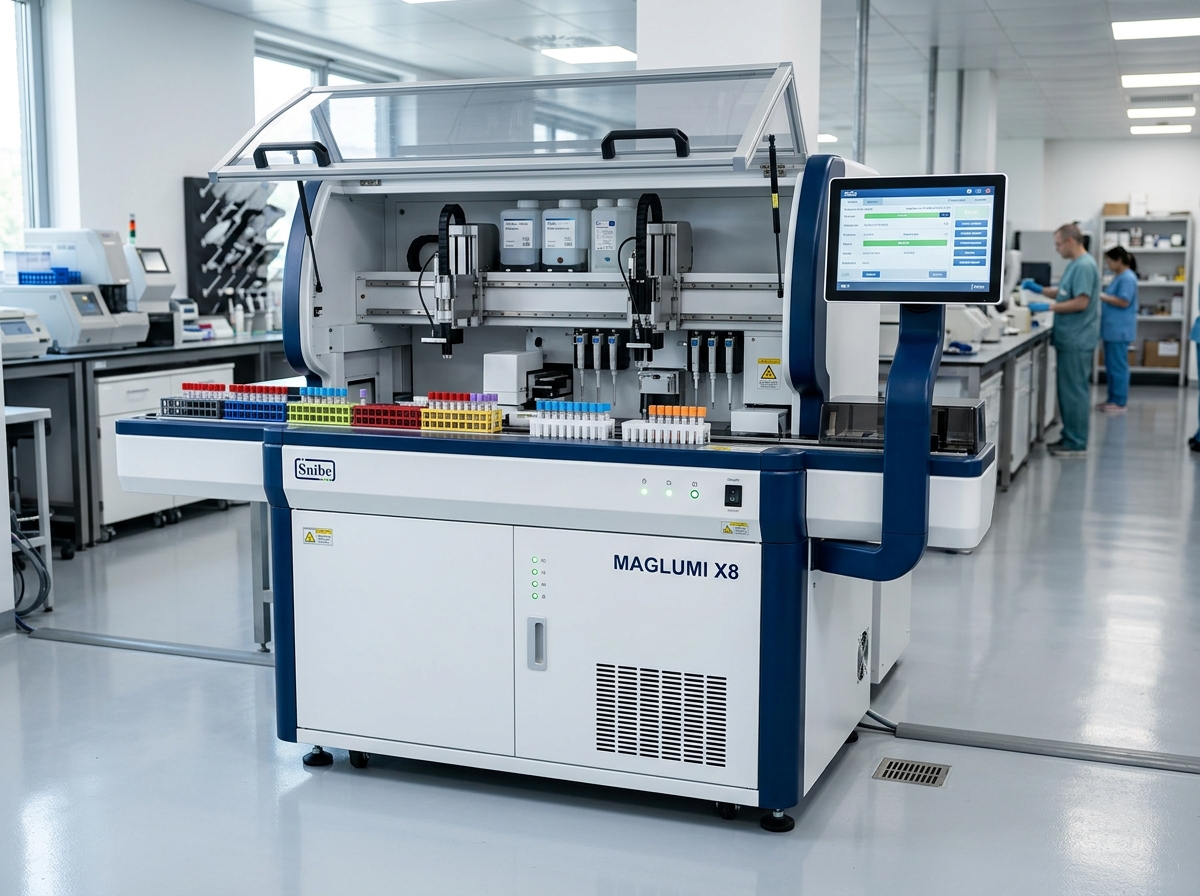

SNIBE CLIA SNIBE MAGLUMI X8 Reference Laboratory Chemiluminescence Workcell

Reference Lab Scale

SNIBE MAGLUMI X8

Ultra-high-throughput floor-standing CLIA workcell engineered for major hospital laboratories and central reference facilities with continuous multi-lane conveyor loading.

Reference Price Reagent Rental Contract (RRC)

RRC / On Request

Throughput Up to 600 tests/hour
Sample Loading 300 sample positions (Conveyor track)
Reagent Positions 42 onboard reagents

Full Specs

Technical Specification Comparison

MAGLUMI Model Comparison

Verified technical comparison across all automated flash CLIA systems supplied by Zenaca Healthcare.

The MAGLUMI 800 and MAGLUMI X3 are both fully automated Chemiluminescence Immunoassay (CLIA) analyzers manufactured by Snibe Diagnostic. Both share the same underlying chemical principle (ABEI non-enzyme flash chemiluminescence with magnetic microbead separation), but the MAGLUMI X3 is a next-generation platform designed to address the capacity, walkaway, and design limitations of the legacy MAGLUMI 800. For growing pathology centres and central hospital laboratories, the MAGLUMI X6 (450 T/H) and floor-standing MAGLUMI X8 (600 T/H workcell) scale this proven platform to high-throughput automation.

Technical Variables System Parameters	MAGLUMI 800 Classic / Legacy	MAGLUMI X3 Next-Gen X-Series	MAGLUMI X6 High-Throughput X	MAGLUMI X8 Reference Workcell
1. Architecture & Methodology
Generation / Architecture	Classic / Legacy benchtop	Next-Generation ("X" Series) benchtop	Next-Generation ("X" Series) benchtop	Next-Generation ("X" Series) floor workcell
Test Principle	Flash CLIA (ABEI label)	Flash CLIA (ABEI label)	Flash CLIA (ABEI label)	Flash CLIA (ABEI label)
Separation Mode	Magnetic microbeads	Magnetic microbeads	Magnetic microbeads	Magnetic microbeads
2. Throughput & Processing Speed
Max Throughput	Up to 180 tests/hour	Up to 200 tests/hour	Up to 450 tests/hour	Up to 600 tests/hour
Time to 1st Result	17 – 20 minutes	17 minutes	15 minutes	15 minutes
3. Reagent Management & Cooling
Reagent Positions	9 onboard	20 onboard (+122% capacity)	30 onboard	42 onboard
Reagent Temperature Control	Onboard refrigeration	24-hour continuous refrigeration at 10°C (±3°C)	24-hour continuous refrigeration at 10°C (±3°C)	24-hour continuous dual cooling at 4°C – 8°C
Reagent Identification	RFID card master curve	Instant RFID tag auto-recognition	Smart RFID continuous inventory tracking	Multi-lot RFID automated calibration tracking
4. Sample Handling & Mechanics
Sample Positions	40 tubes	72 tubes (+80% walkaway)	112 tubes (16 racks × 7)	300 tubes (Conveyor track)
Loading Mechanism	Batch / continuous sample loading (carousel)	Continuous "no-pause" loading for samples, reagents & cups	Continuous rack-based loading & bulk cuvette feeder	Multi-lane continuous robotic conveyor with STAT lane
STAT Emergency Handling	Designated STAT positions	Any position STAT priority • Instant STAT access	Dedicated STAT priority rack lanes	Continuous autonomous STAT priority bypass track
Pipetting & Carryover	Titanium coated needle (< 0.1 ppm)	Teflon titanium probe • Clot & liquid sensor (< 0.1 ppm)	Dual pipetting probes • Bubble & clot sensor (< 0.05 ppm)	Quad-probe independent system • Ultrasonic wash (< 0.01 ppm)
Cuvette Capacity	Circular cuvette wheel	384 reaction cups onboard • Continuous feeding	1,000 cuvettes bulk continuous loader	2,800 reaction cuvettes onboard simultaneously
5. Physical Dimensions, Footprint & Weight
Dimensions (W × D × H)	1020 × 720 × 560 mm	860 × 660 × 640 mm (More compact)	1350 × 850 × 750 mm	2000 × 1200 × 1500 mm
Footprint & Form Factor	Standard Benchtop (~0.73 m²)	Space-saving Benchtop (< 0.57 m²)	High-capacity Benchtop (~1.15 m²)	Floor-standing reference workcell
Net Weight	Approx. 73 kg	Approx. 88 kg	Approx. 185 kg	Approx. 450 kg
6. Utility & Operating Requirements
Power Supply	100 – 240 V, 50/60 Hz	100 – 240 V, 50/60 Hz	100 – 240 V, 50/60 Hz	220 – 240 V, 50/60 Hz
Power Consumption	~450 VA	~500 VA	~800 VA	~1500 VA
Water & Waste Management	Self-contained liquid reservoirs	Self-contained liquid containers • Minimal waste	Direct connection or bulk carboy reservoirs	Direct deionized water feed • Automated drainage
Operating Temperature	15°C – 30°C	10°C – 30°C • RH ≤ 70%	15°C – 30°C • RH ≤ 80%	15°C – 30°C • RH ≤ 75%
7. Laboratory Connectivity & Applications
LIS Connectivity	Bi-directional ASTM & HL7	Bi-directional HL7, ASTM, TCP/IP	Bi-directional HL7 & LAS Ready	Bi-directional HL7 & TLA Track Ready
Recommended Facility Scale	Routine clinical laboratories seeking proven, economical CLIA	Growing labs seeking max menu diversity & walkaway convenience	High-volume pathology centres & hospital diagnostics	Reference laboratories, hospital clusters & medical institutes
Direct Actions	Full Specs	Full Specs	Full Specs	Full Specs

Looking for Immunoassay Application Support?

Our regional technical team works with OEM application specialists to assist with assay setup, calibrator lot adjustments, and quality control validation across Punjab, Haryana, and Himachal Pradesh.
